Fireplace TV Stand: How Wide, How High & Can the TV Go Above It?
Fireplace TV Stand: How Wide, How High & Can the TV Go Above It?
A fireplace TV stand is a media console with an electric fireplace built into its center. It does two jobs at once — it carries your TV and AV gear, and it adds a glowing, heating focal point — but the firebox changes the sizing math in two ways people rarely plan for: the console is taller than a normal TV stand, and the top surface your TV sits on is interrupted by the fireplace below it.
This guide separates the two ways the phrase is used, gives you the real widths to size against (from the tv-sizes measured TV database), works through TV height on a taller console, and covers heat, load and the wall-mounted ("floating") version.
Quick answers
| Question | Short answer |
|---|---|
| What is a fireplace TV stand? | A media console with an electric fireplace built into the middle. Most are plug-in electric units with a flame-only mode; you do not need a chimney or vent. |
| How wide should it be? | At least as wide as your TV's feet, and roughly as wide as the TV chassis for a balanced look. Fireplace stands commonly run 58-80 inches wide. |
| Will "fits TVs up to 85 inches" really fit my TV? | Check the numbers. Real 85-inch TVs are about 76 inches wide; a 75-inch-wide console is slightly narrower, so a big TV can overhang the ends. |
| Can the TV sit on top? | Yes - that is the standard setup. The feet must sit fully on the top surface, and the taller console raises the screen. |
| Can I wall-mount the TV above it? | Yes, and it is often the better fix for height. Leave a gap above the fireplace/console and follow the listing's clearance. |
| Is the heat bad for the TV? | Electric fireplaces usually run flame-only with the heater off. When the heater is on, keep the TV, cables and decor clear of the vents and follow the manufacturer's clearance. |
| Does a floating fireplace stand work the same way? | The sizing is similar, but the whole unit hangs on the wall, so stud anchoring matters and the TV is usually wall-mounted above it. |
What a fireplace TV stand actually is
A fireplace TV stand combines two pieces of furniture into one footprint:
- An electric fireplace insert in the middle of a media console. Inserts are typically 18-36 inches wide, with some panoramic units using a 60-inch insert. The flames are LED-driven and the heat is a separate, optional function.
- A media console around it, usually 58-80 inches wide, with open shelves, cabinets or both for AV gear.
The common configurations are:
- Freestanding console - feet or legs on the floor, TV on top. The most common type by far.
- Floating / wall-mounted console - brackets fix the console to the wall; the TV is normally wall-mounted above it. This is the "floating TV stand with fireplace" style.
- Corner or angled console - fits a corner, generally for smaller TV sizes.
- Mantel / tall console - 30-36 inches tall with a shelf or mantel effect. It looks substantial but raises the TV.
What it is not: a masonry or wood-burning fireplace. There is no flue, no venting and no real fire, so the placement rules are furniture rules plus electrical and heat-clearance rules - not chimney rules.
Width: the number that decides whether your TV fits
The label "65-inch TV" is the screen diagonal, not the width. The top of the fireplace console only has to carry the TV's feet, but because the fireplace occupies the center, you cannot rely on a narrow center pedestal the way you can on a plain console. The whole top has to be wide enough for the feet and stable enough that the TV does not look like it is balancing on the ends.
The table below compares theoretical 16:9 screen geometry (calculated from the diagonal only - not a chassis measurement) with the real chassis widths measured in the tv-sizes database:
| TV class | Screen width (theoretical 16:9) | Screen height (theoretical 16:9) | Typical real chassis width (tv-sizes database) |
|---|---|---|---|
| 50" | 43.6" | 24.5" | 44-45" |
| 55" | 47.9" | 27.0" | 48-49" |
| 60" | 52.3" | 29.4" | 53-54" |
| 65" | 56.7" | 31.9" | 57-58" |
| 70" | 61.0" | 34.3" | 62" |
| 75" | 65.4" | 36.8" | 66-67" |
| 85" | 74.0" | 41.6" | 76" |
The "theoretical" columns are pure 16:9 screen geometry. Real TVs add a bezel, so the chassis is a little wider - and that is the number that has to fit on the console.
Fireplace-stand width that works for each TV size
| TV class | Real TV width | Fireplace console width that fits | Notes |
|---|---|---|---|
| 43" | 38-39" | 48-55" | Almost any fireplace console is wide enough. |
| 50" | 44-45" | 48-55" | 48" is the practical minimum. |
| 55" | 48-49" | 55-58" | A 55" console leaves little margin for edge legs. |
| 60" | 53-54" | 58-60" | |
| 65" | 57-58" | 58-65" | Edge legs (about 52") need the full 58"+ top. |
| 70" | 62" | 65-70" | 70" is the sweet spot and the most common size. |
| 75" | 66-67" | 70-75" | 70" works; 75" looks more balanced. |
| 85" | 76" | 75-80"+ | A 75" console is slightly narrower than the TV. |
The "fits up to 85 inches" trap
Marketing copy describes the largest TV the stand is rated for, not the width of the stand. A 75-inch-wide console is often listed as fitting TVs up to 85 inches, but a real 85-inch TV is about 76 inches wide. The result is a small overhang on each side - fine for many rooms, but not the flush, built-in look the photos suggest. Size to the real chassis width of your TV, not the "up to" number, and measure the distance between the outer edges of the TV's feet. The TV screen size comparison shows how widths scale across classes.
Fit calculator
Measure the furniture.
We’ll size the screen.
Enter the clear inside width of your cabinet and the usable width of its base.
Feet and the top surface
TV feet come in two families, and they change how much top you need:
- Center/pedestal stands sit under the middle of the TV. On a plain console they let you use a stand much narrower than the TV; on a fireplace console the top is continuous, so they still fit.
- Edge legs sit near the corners. They need the console top to be at least as wide as the leg span, which is almost the full TV width. This is where a 58-inch console can fail a 65-inch TV with wide legs.
Real examples from the tv-sizes database show the spread within one size class:
| Model | TV width (DB) | Feet/stand width (DB) |
|---|---|---|
| Sony XBR65X900E (65") | 57" | 20" (center) |
| Samsung UN65MU8000 (65") | 57" | 38" |
| LG 65UJ6300 (65") | 57" | 52" (edge legs) |
| VIZIO M65-E0 (65") | 58" | 53" |
| Sony KD70X690E (70") | 62" | 25" (center) |
| LG 70UJ6570 (70") | 62" | 63" (edge legs) |
| Sony XBR75Z9D (75") | 67" | 17" (center) |
| LG 75UJ6470 (75") | 67" | 68" (edge legs) |
Same diagonal, very different footprint. Also check depth: fireplace consoles are often 13-16 inches deep, and the TV's feet need to sit on that depth without hanging over the front edge.
Height: the fireplace-stand trap
This is the biggest difference between a fireplace stand and a normal one. A standard TV console is usually 20-24 inches tall. A fireplace console has to house a firebox and often a mantel, so it is commonly 26-36 inches tall - and because the TV sits on top, the screen ends up higher.
The goal is the same as any TV: the screen center near your seated eye level, roughly 40-45 inches off the floor. The formula is:
Console top height = target screen-center height - (screen height / 2) - TV feet height
Using a 42-inch target and about 2 inches of feet:
| TV class | Theoretical screen height | Half height | Console top for a 42" screen center |
|---|---|---|---|
| 55" | 27.0" | 13.5" | about 26.5" |
| 60" | 29.4" | 14.7" | about 25.3" |
| 65" | 31.9" | 16.0" | about 24.0" |
| 70" | 34.3" | 17.2" | about 22.8" |
| 75" | 36.8" | 18.4" | about 21.6" |
| 85" | 41.6" | 20.8" | about 19.2" |
Read that against real console heights: a 65-inch TV on a 26-inch fireplace console puts the screen center near 44 inches (fine); the same TV on a 30-inch console puts it near 48 inches; on a 36-inch mantel console it lands near 54 inches - clearly high for a seated viewer. This is the "TV too high over the fake fireplace" problem that comes up constantly in living-room design discussions (r/TVTooHigh).
Fixes, in order of practicality:
- Choose a low fireplace console (26-28 inches) for a 65-75-inch TV.
- Wall-mount the TV and set the screen height independently, letting the fireplace console sit below as furniture. Leave roughly 6-12 inches between the top of the console/fireplace and the bottom of the TV for heat clearance and access.
- Recline your seating if the room really is set up for a higher screen.
- Use a tilting mount to angle the screen down toward the seats. See wall-mount considerations for a fixed-mount example on a specific TV.
Heat, clearance and cables
Electric fireplace inserts are plug-in appliances, and the flame effect and the heater are usually independent - so you can have the fire look with the heat off. If a TV sits above the fireplace, running flame-only is the low-stress choice.
When the heater is on:
- Units list heater modes such as 750W and 1500W with a stated room coverage. Keep the TV, cables, curtains and decor clear of the vents, and follow the clearance in the manual.
- Avoid placing the TV so its bottom edge sits directly in the heater's air path.
- Plan the outlet: the fireplace can draw significant current, so avoid overloading a shared circuit or daisy-chaining power strips.
- Route cables down behind the console rather than across the fireplace face, and use the cable pass-throughs most consoles include.
This is general practice, not a safety guarantee - the listing and manual for your specific unit are the authority on clearances.
Weight and load
The console's listed support capacity is the number to respect. Real units quote figures such as 220-250 lb. Add your TV's weight plus anything in the cabinets and on the top.
The tv-sizes database tracks width, height and stand width, but not weight, so check your TV's spec sheet for its weight and sum it with your gear. For a TV sitting on top, the load is centered and front-heavy, so also think about how the feet spread that weight across the top surface.

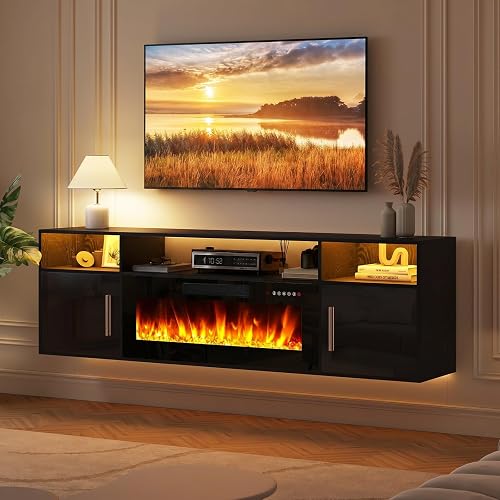

Floating fireplace TV stands
A floating fireplace TV stand is a wall-mounted console with an electric fireplace. It is the same idea as a floating TV stand but with a firebox, and it is usually paired with a wall-mounted TV above rather than a TV on top. The consequences:
- The load goes to the wall. Anchor into studs (or the right masonry fixings) - the cabinet, its contents, the fireplace and often the TV all depend on the mounting. Drywall anchors alone are not appropriate for a loaded, wide console.
- Width is freer when the TV is on the wall above, but the console still has to look proportional to the TV.
- Height is controlled separately: mount the TV at eye level, then hang the console below it and keep it clear of the heater's air path.
- Cable management is the payoff: the floating gap and open back hide the TV's cables.
Related reading: floating TV console, floating TV cabinet, floating shelves under a TV, and floating TV shelf.

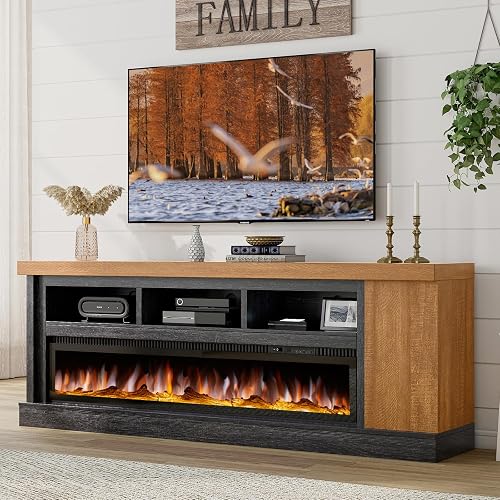

Real fireplace TV stands that fit common TV sizes
The stands below are real products found during research on Amazon. Widths and TV compatibility come from each listing's title or stated specifications; always confirm the load rating, depth and heater clearance in the listing before buying.
Before you buy: a 6-point check
- Measure the TV's feet span and foot depth, and write them down.
- Measure the real TV width (or look it up in the size archive for your class) - not the "up to" number.
- Measure your seated eye height and compute the console height you need from the formula above.
- Check where the outlet is and whether the cord reaches.
- Confirm the console's listed load capacity and the TV's weight.
- Confirm the insert size you want and that it runs flame-only as well as with heat.
Related guides on tv-sizes.com
- Sizing by size: TV stand for a 65 inch TV, TV stand for a 75 inch TV, TV stand for an 85 inch TV
- Wall-mounted options: floating TV stand, floating TV console, floating TV cabinet
- TV screen size comparison and the fit calculator
- Browse measured TVs: 55", 65", 70", 75" and 85", or search the full database
Bottom line
A fireplace TV stand is a normal media console with two extra constraints: the top has to be wide enough for your TV's real width and feet, and the taller firebox plus mantel raises the screen. Size the console to your TV's measured chassis width - roughly 58-65 inches for a 65-inch TV, 70-75 inches for a 75-inch TV, and 75+ inches for an 85-inch TV - keep the console top low enough that the screen center lands near your eye level, and if the height does not work out, wall-mount the TV and let the fireplace console sit below. Run the fireplace flame-only when you are not using the heat, keep the vents and cables clear, and check the load rating against the TV's weight.
